3dm883 3 FAZLI Step Sürücü
5.652,00 TL KDV Dahil
*1.884,00 TL den başlayan taksitlerle!!
Kategori
Marka
Stok Kodu
3dm883
Fiyat
120,00 USD + KDV

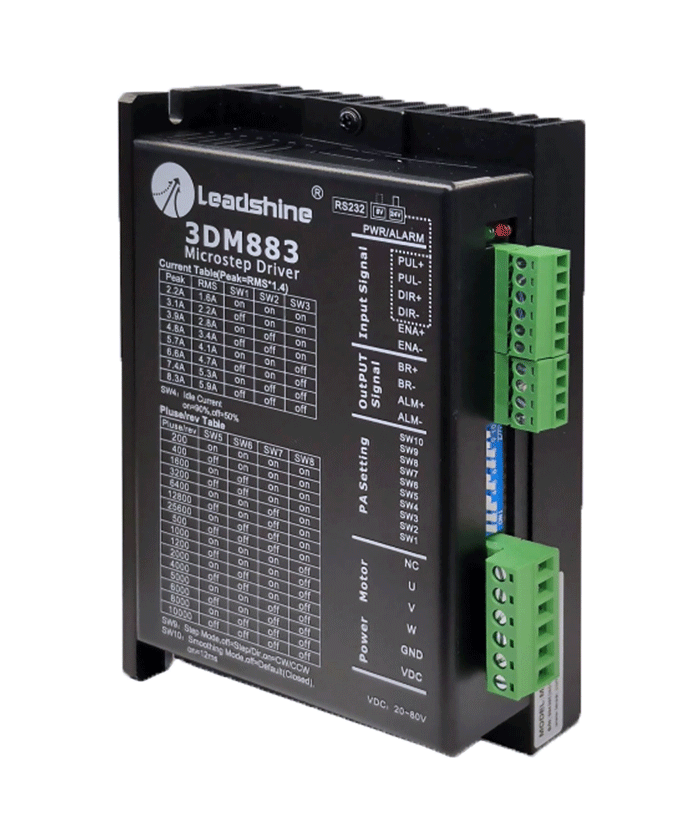

3dm883 3 FAZLI STEP SÜRÜCÜ
3 FAZLI MOTORLAR İÇİN
https://www.leadshine.com/product-detail/3DM883.html
● Step & direction (PUL/DIR) or CW/CCW (double pulse) control
● Power supply voltage 20-80 VDC
● 400KHz max pulse input frequency in dutycycle 50%
● 16 microstep resolutions of 200-25,600 via DIP switches, or 200-51,200 via software
● 8 output current settings of 2.2 -8.3A via DIP Switches, or 0.5-8.3A via software
● Configurable control command smoothing for reducing motor vibration
| Model | 3DM883 |
| Series | DM |
| Command Source | PUL&DIR, CW&CCW |
| Operation Voltage (VDC) | 20-80 |
| Output Current (A, Peak) | 2.2-8.3A |
| Input Frequency (KHz, Max.) | 500 |
| Logical Voltage (VDC) | 5 or 24 |
| # of Inputs | 3 |
| # of Outputs | 2 |
| Characteristics | 3-phase motor |
