Selecting Microstep Resolution and drive Output Current

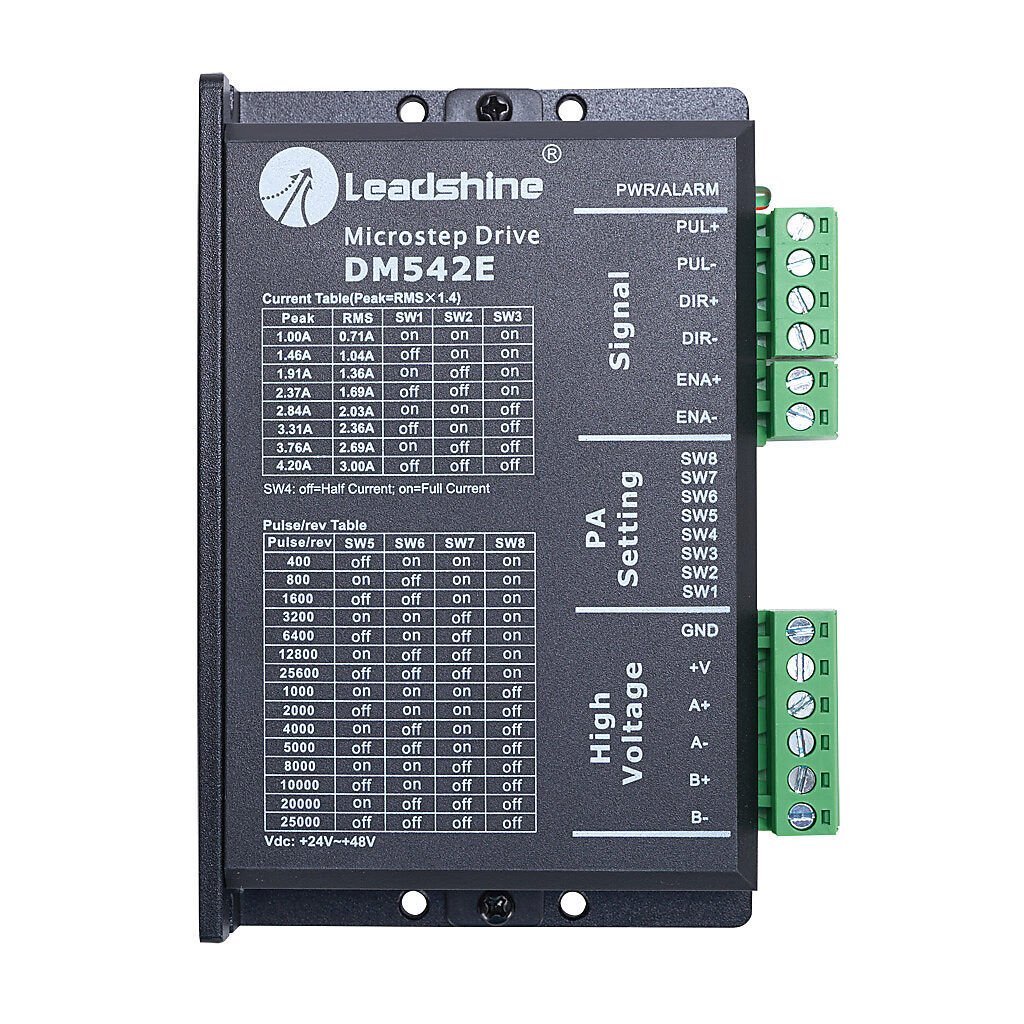

This drive uses an 8-bit DIP switch to set microstep resolution, and motor operating current, as shown below:

Microstep Resolution Selection

Microstep resolution is set by SW5, 6, 7, 8 of the DIP switch as shown in the following table:

Current Settings

The first three bits (SW1, 2, 3) of the DIP switch are used to set the dynamic current. Select a setting closest to your motor's required current.

Note: Due to motor inductance, the actual current in the coil may be smaller than the dynamic current setting, particularly under high speed condition.

Typical Connection

Mechanical Specifications (unit = mm [inch])
